Ceramic Brush
Ceramic Brush is a brush made of ceramic material that is used to effectively remove dust and debris from the surface of wafers, thereby maintaining a clean room environment for wafers.
- Feature
- Strong materials are used to ensure that it will remain robust over time.
- Can be used in a wide range of manufacturing processes and perform reliably at high temperatures.
- Can be used in a wide range of environments and are particularly suitable for use in clean room environments in the manufacture of semiconductors.
- To increase precision, it effectively removes microscopic dirt or particles from the wafer surface.
- Ceramic materials are generally environmentally friendly and can even be reused, making them a sustainable choice.
Detailed Specification
Ceramic Brush
H&J ceramic brushes are ceramic abrasive wheels that are the best at polishing PCB-based surfaces, Hole Plugging Ink, and Prepreg Resin.
Ceramic Brush
The ceramic brush is primarily used for polishing and burr removal.
The ceramic fibers break down with use, which is followed by the regeneration of new grinding edges.
The combination of nanoclasses reduces abrasive marks and provides a uniform surface finish.

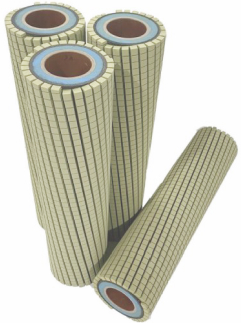

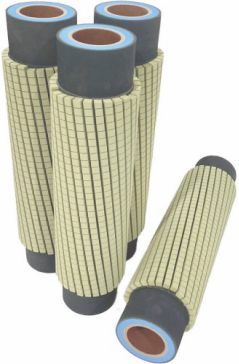

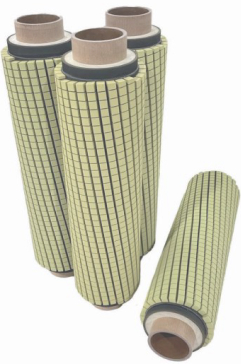

Product SAMPLE & Standard
-
size 610 X 452
-
size 610 X 505
-
size 610 X 610
| Name | Ceramaic Brush | Size |
Out Diameter: 147~150mm In Diameter: 76.2mm Length:610mm, below 610mm Total Length: 610mm |
|---|---|---|---|
| Particle size | #220, #320, #400, #600, #800, #1000, #12000, #1500, #2000, #2500 | ||
| Grinding Material | Silicon carbide | ||

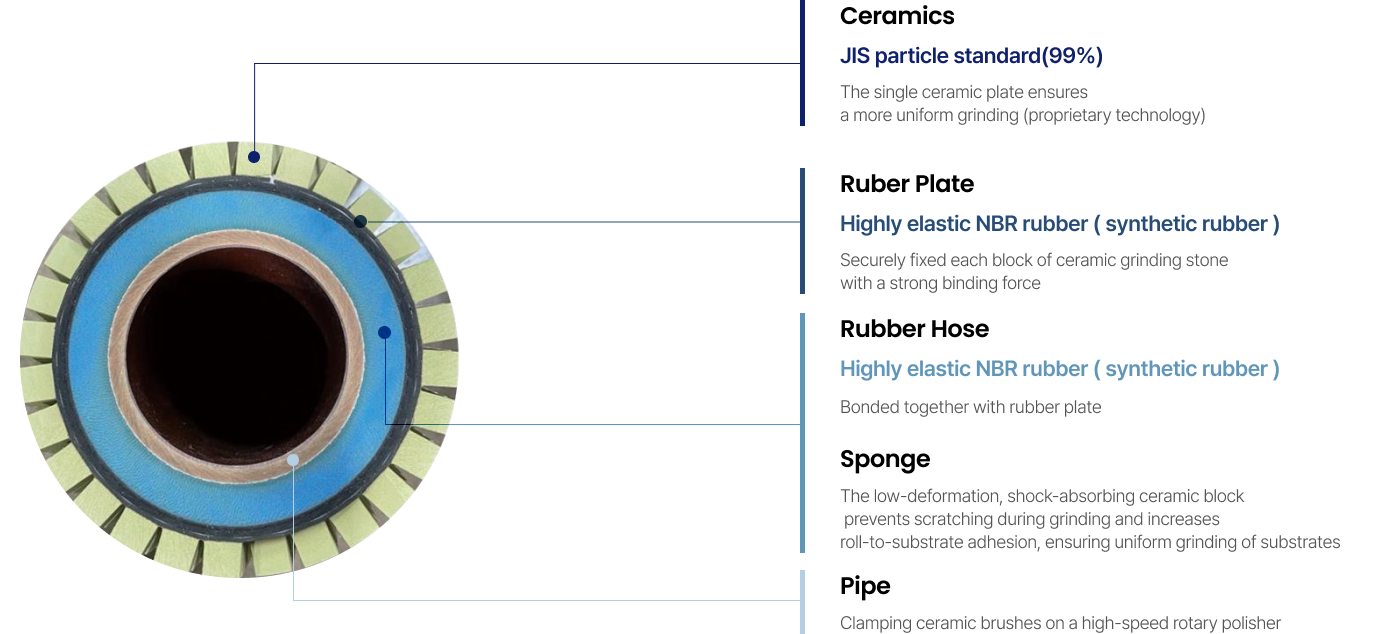

Ceramic brush structure
