Introduction
Diamond Wheel
Diamond Wheels are abrasive wheels containing metallic diamond particles, offering a high-precision polishing solution for direct-bound silicon and gallium arsenide, a metallic class of semiconductor materials.
- Feature
- Special bonds increase cutting forces, improve chip evacuation and increase grinding water supply
- Higher wear resistance due to high grit retention
- Reduce damage depth
Detailed Specification
MVP Wheel
The MVP Wheel is a wheel-shaped structure containing advanced metals and resistive muffling technology.
It is used in semiconductor processes to optimize electrical performance and improve heat dissipation,
thereby enhancing the reliability and performance of semiconductor devices.
Diamond Wheel
The Diamond Wheel is a high performance grinding wheel used for grinding a wide range of materials.
They are suitable for rough and medium grinding of brittle materials such as glass, ceramics, semiconductor electronics and refractory materials.
| Axis rpm | 2,800 rpm | S.O. | 0 sec |
|---|---|---|---|
| Table rpm | 300 rpm | Slow up | 0.5 ㎛ / sec 60 sec |
| Feed rate | 1.0 ㎛/s | Grinding water | Tap water |
| Polishing table | 250 ㎛ | Flow rate | 5.0 L/min |
Flat Grinding Process (roughing)
| Whetstone grit | SD | |
|---|---|---|
| Grain size | 1000, 1500, 2000, 2500, 3000 size | |
| Size | Wheel diameter D(mm) | Width of grinding wheel W(mm) |
| 200 ~ 300 | 3 ~ 4 | |
| Shape | Cup-shaped Wheel | |

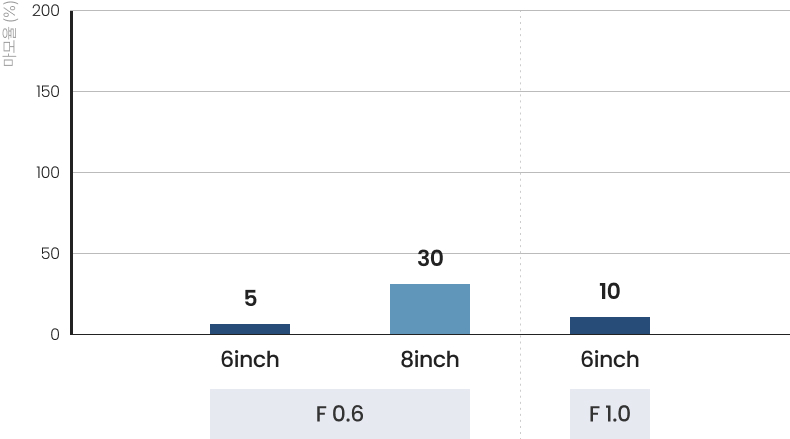

6inch
Complete
8inch
Complete
