Demounter
The Demounter is a tool used to safely remove semiconductor chips or other critical components from a semiconductor device or circuit board. It is designed to remove and recycle parts without damaging the equipment.
- Feature
- Safely remove semiconductor components within electronic devices without damage
- Automated features speed up the process and reduce operator effort
- Safely remove components to facilitate recycling and increase resource recovery
- Fine-tuned to handle different types of semiconductor components
- Extend the equipment life of electronics and encourage the use of sustainable technologies while reducing costs
Detailed Specification
TB / DB
In semiconductor design, a test block (TB) is a small block inserted into a chip to test and verify a specific function,
while a design block (DB) represents each unit of design required to implement the functionality of a static chip.

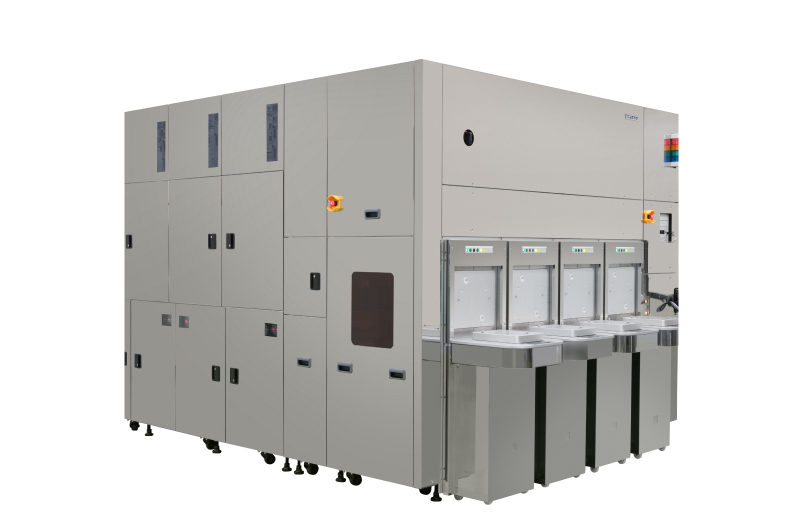

Demounter

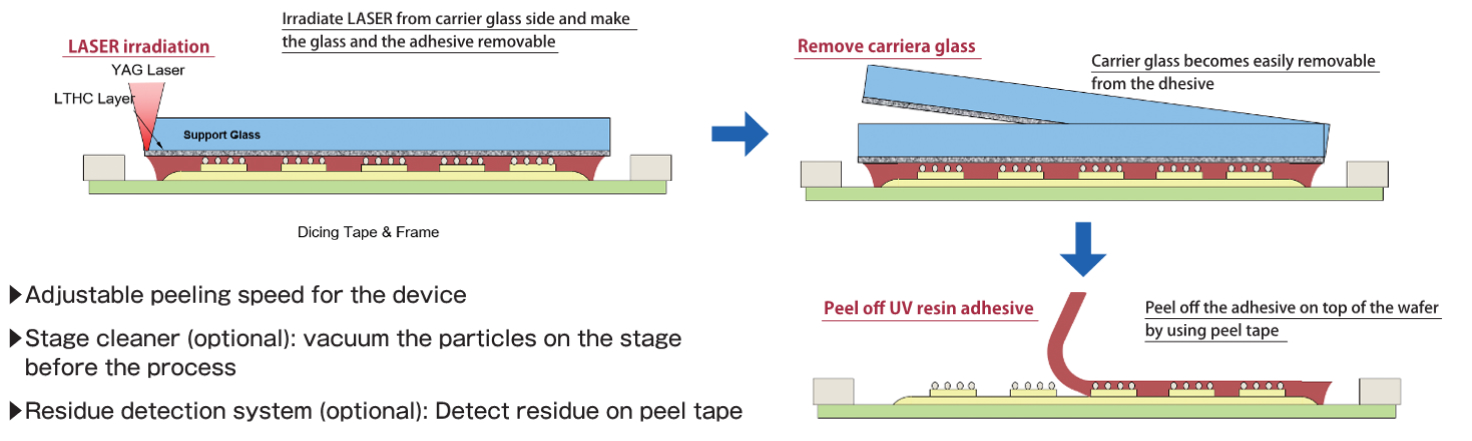

The Demounter is a piece of equipment that uses an infrared (IR) laser
to separate the bonded glass wafer from the carrier using 3M material.
- Dry Process / Low Co0
- Solvent-free dry process for debonding.
- LASER debonding ＋ Peel tape.
- No cleaning process required after debonding.
- High Throughput
- High throughput due to no wet process.
- Throughput<25WPH (STD), 40WPH (High throughput version)
- Simple Configuration
- No chamber due to no wet process
